Grandway FHO3000-D26, OTDR 1310/1550nm
Grandway FHO3000-D26 is a singlemode optical time-domain reflectometer with 1310/1550 nm wavelength and 26/24 dB dynamic range.

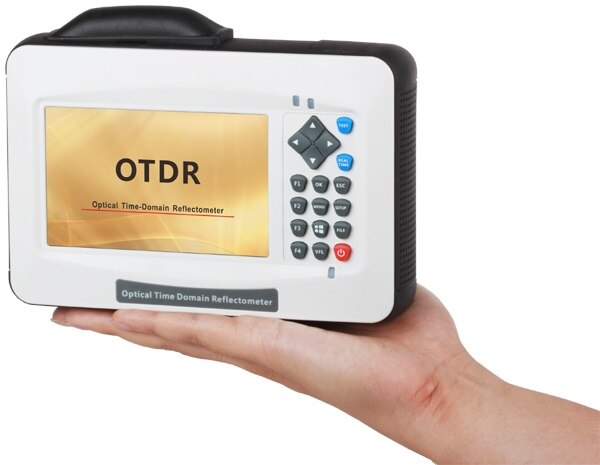

Is characterized by compact and lightweight design to be easily operated with one hand and the testing requires only one key to start. It allows anyone to proceed error-free testing and is perfect for outdoor use. FHO3000 is a cost effective solution for accurate and complete fiber evaluation.
Wavelength: 1310/1550 nm
Dynamic Range: 26/24 dB
Attenuation Dead Zone: (ADZ)
Event Dead Zone (EDZ): 1 m
Pulse Width: 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs
Testing Distance: 100 m, 500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km, 160 km, 240 km
Sampling Resolution: min. 5 cm
Sampling: Maximum 128,000 points
Linearity: ≤0.05 dB/dB
Loss Threshold: 0.01 dB
Distance Resolution: 0.01 m
Distance Accuracy: ±(1m+measuring distance×3×10-5+sampling resolution)
