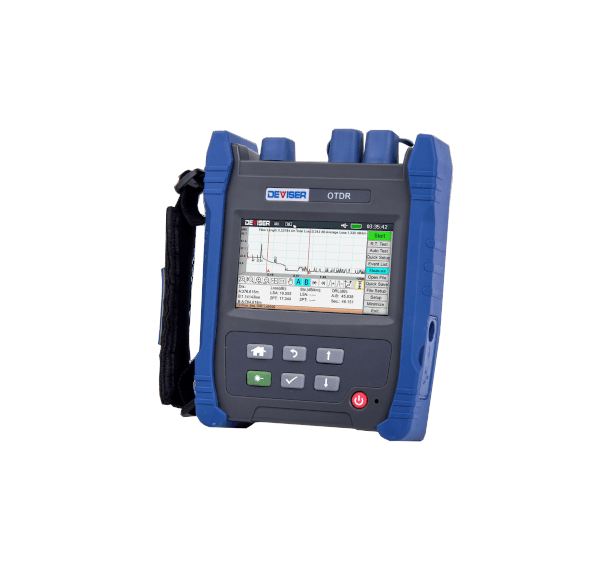

Deviser AE1001 SM OTDR, 1310/1550 nm, 26/24 dB (9/125 um)

Download Data Sheet

The last thing a fiber maintenance technician needs is a double armful of bulky, feature-bloated equipment to bog down the job. The new AE1001 from Deviser Instruments is a sleek, zerofuss OTDR weighing less than 1 kg that tests the common 1310 & 1550nm wavelengths in 5s flat. Low power consumption and a solid 2500mAH battery allow the AE1001 to run automated, manual, or real-time tests continuously for over 4 hours, and are supplemented with the always-handy OPM and VFL.

Optical Parameter

Test Wavelength: 1310nm ± 20nm

Dynamic range: 26 dB

Event deadzone: ≤ 3m

Attenuation deadzone: ≤ 10m

Measurement range: 150m, 300m, 500m, 1km, 2km, 5km, 10km, 20km, 40km, 80km

Pulse width: 3ns, 5ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1μs, 2μs, 5μs, 10μs, 20μs

Sampling resolution: Auto / high-resolution modes

Sampling points: Up to 12,800

Group refractive index: 1.000000 ~ 2.000000

Distance uncertainty: ± (0.75 + 0.005% × fiber length + sample resolution)

Linearity: 0.05 dB/dB

Loss threshold: 0.001 dB

Loss resolution: 0.001 dB

Refresh rate: 10 fields/s

Reluctance accuracy: ±3 dB

Measurement time range: 5s ~ 5min, real time

Data storage: 16 GB, up to 160,000 OTDR traces



Other Test Modes

Optical Power Meter:

Calibrated λ: 1310, 1550nm

Operating λ: 850, 980, 1300, 1310, 1490, 1550, 1610, 1625, 1650nm

Power range: Select from [-70 ~ +10 dBm] or [-50 ~ +26 dBm]

Power accuracy: ±0.23 dB

Wavelength: 650 ± 10nm

Power: 1mW

Compliance: Laser Safety Class II

Optical port type: PC (default); APC (optional)

Optical adapter type: FC (default); SC, ST, LC, SC/APC (optional)



General Specifications

Display: 4.3″ dot matrix TFT LCD touchscreen

Interface: 1x USB 2.0; 1x RJ45 LAN (10M/100M/1000M, optional)

Power:

Supply: 100 ~ 240V, 1.5A, 50~60Hz (AC); max 12V / 2Ah (DC); total max power 24 W

Consumption: < 3 W

Battery: 7.4V / 2500 mAh Li-ion battery, 18.5 Wh

Operating Time: ~ 6 hrs on full charge (4 hrs continuous testing)

Operating Temperature: -10°C ~ +50°C

Storage Temperature: -40°C ~ +70°C

Relative Humidity: 0 ~ 95%, non-condensing

Dimensions (LxWxH): 7.1″ x 5.7″ x 2.2″ (180mm x 145mm x 55mm)

Weight: < 2.2 lbs (< 1 kg)
