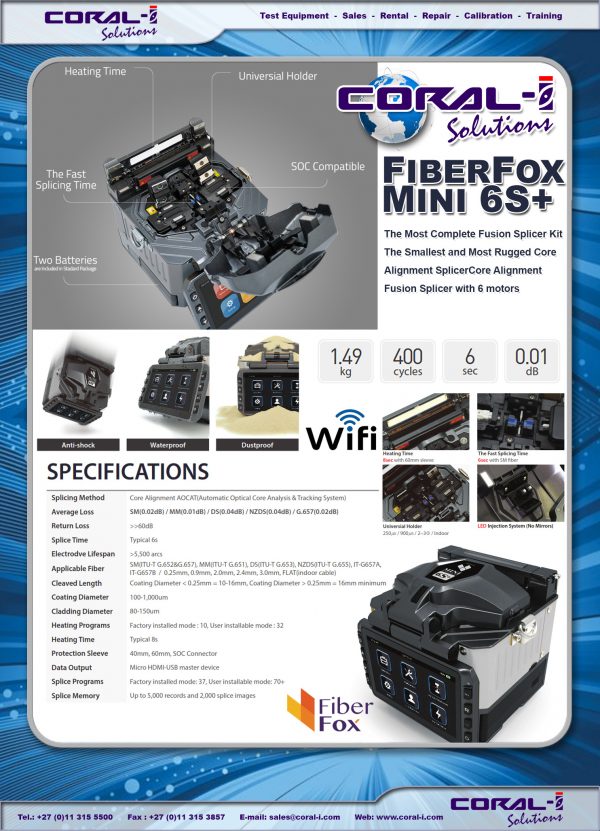

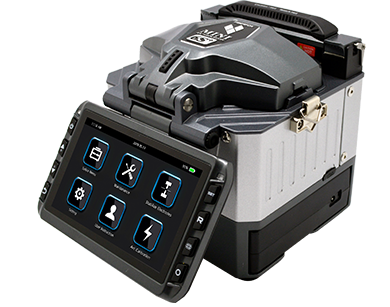

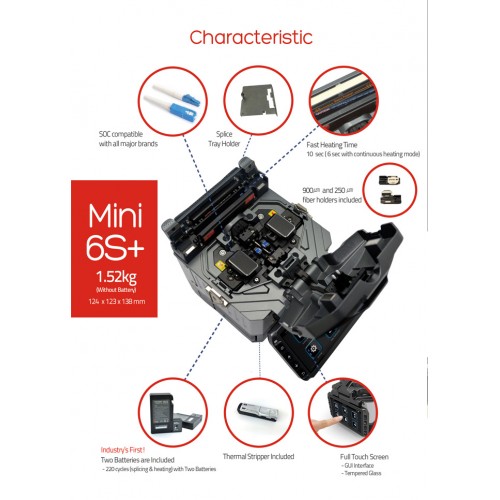

FiberFox Mini 6S+ Core Alignment Fusion Splicer (With WiFi)

Specifications:

Splicing Method: Core Alignment AOCAT(Automatic Optical Core Analysis & Tracking System)

Average Loss: SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)

Return Loss: >>60DB

Splice Time: 10s average SM / SM 7s Quick mode

Electrodve Lifespan: >5,500 arcs

Applicable Fiber: SM(ITU-T G.652&G.657), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B / 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)

Cleaved Length: Coating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = 16mm minimum

Coating Dlameter: 100-1,000um

Cladding Dlarmeter: 80-150um

Heating Programs: Factory installed mode : 11, User installable mode : 23

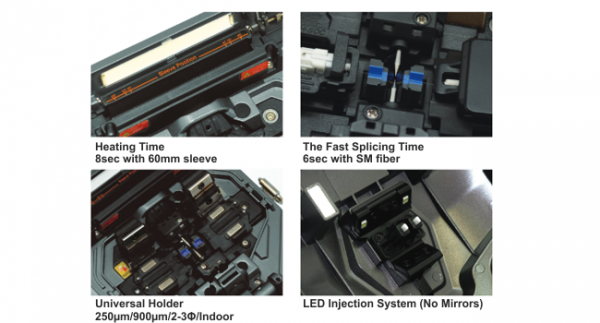

Heating Time: Typical 15s

Protection Sleeve: 40mm, 60mm, SOC Connector Storage

Data Output: Micro HDMI-USB master device

Splice Programs: Factory installed mode: 33, User installable mode: 70+

Splice Memory: Up to 5,000 records and 2,000 splice images
